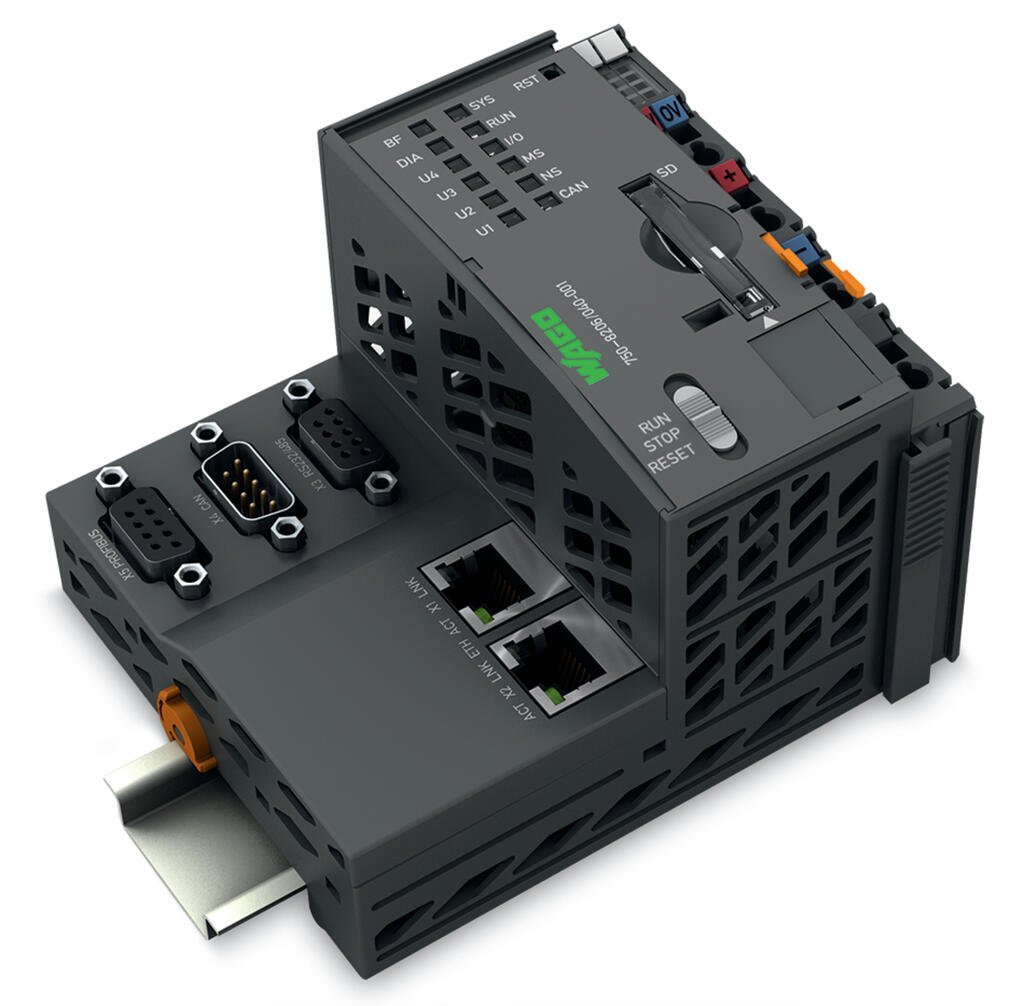

750-8206/040-001 Controller PFC200
750-8206/040-001
Controller PFC200; 2 x ETHERNET, RS-232/-485, CAN, CANopen, PROFIBUS Slave; Telecontrol technology; Extreme
Liên hệ:
Controller PFC200; 2 x ETHERNET, RS-232/-485, CAN, CANopen, PROFIBUS Slave; Telecontrol technology; Extreme
750-8206/040-001
Technical data
| Communications | PROFIBUS CANopen Modbus (TCP, UDP) ETHERNET EtherNet/IPTM Adapter (slave), library for e!RUNTIME Modbus RTU RS-232 serial interface RS-485 interface MQTT Telecontrol protocols |
| ETHERNET protocols | DHCP DNS NTP FTP FTPS SNMP HTTP HTTPS SSH |
| Telecontrol protocols | IEC 60870-5-101/-103/-104 IEC 61400-25 IEC 61850-7 DNP3 |
| Visualization | Web-Visu |
| Operating system | Real-time Linux (with PREEMPT_RT patch) |
| CPU | Cortex A8; 600 MHz |
| Programming languages per IEC 61131-3 | Instruction List (IL) Ladder Diagram (LD) Function Block Diagram (FBD) Continuous Function Chart (CFC) Structured Text (ST) Sequential Function Chart (SFC) |
| Programming environment | e!COCKPIT (based on CODESYS V3) WAGO-I/O-PRO V2.3 (based on CODESYS V2.3) |
| Configuration options | e!COCKPIT WAGO-I/O-CHECK Web-Based Management e!RUNTIME library CODESYS Library |
| Transmission rate | ETHERNET: 10/100 Mbit/s |
| Transmission medium (communication/fieldbus) | ETHERNET: Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length |
| Main memory (RAM) | 256MB |
| Internal memory (flash) | 256MB |
| Non-volatile hardware memory | 128kbyte |
| Program memory | CODESYS V2: 16 MB; CODESYS V3: 60 MB (Program and data memory (dynamically distributed)) |
| Data memory | CODESYS V2: 64 MB; CODESYS V3: 60 MB Program and data memory (dynamically distributed) |
| Non-volatile software memory | 128kbyte |
| Non-volatile software memory | 128.kbyte |
| Type of memory card | SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO’s memory card) |
| Memory card slot | Push-push mechanism; Cover lid (sealable) |
| Number of modules per node (max.) | 64 |
| Input and output process image (internal) max. | 1000 words/1000 words |
| Input and output process image (Modbus®) max. | CODESYS V2: 1000 words/1000 words; CODESYS V3: 32000 words/32000 words |
| Input and output process image (PROFIBUS) max. | 244 bytes/244 bytes |
| Input and output process image (CAN) max. | 2000 words/2000 words |
| Indicators | LED (SYS, RUN, I/O, CAN, BF, DIA, U1 … U4) red/green/orange: Status system, program, internal data bus, CANopen, PROFIBUS, PROFIBUS diagnostics, status programmable by user (can be used via CODESYS library); LED (A, B) green: System power supply status, field supply |
| Derating | Derating (supply voltage):
Ambient temperatures under laboratory conditions: (-25 … +30 %); for -40 … +55 °C: 24 V (-25 … +20 %); for +55 … +70 °C: 24 V (-25 … +10 %); Lower limit in all temperature ranges: -27.5 % (including 15 % residual ripple) |
| Supply voltage (system) | 24 VDC; via pluggable connector (CAGE CLAMP® connection); Derating must be observed! |
| Input current (typ.) at nominal load (24 V) | 550mA |
| Power supply efficiency (typ.) at nominal load (24 V) | 90% |
| Current consumption (5 V system supply) | 600mA |
| Total current (system supply) | 1,700mA |
| Supply voltage (field) | 24 VDC; Power supply via pluggable connector (CAGE CLAMP® connection); Transmission via power jumper contacts; Derating must be observed! |
| Current carrying capacity (power jumper contacts) | 10A |
| Number of outgoing power jumper contacts | 2 |
| Ratings per | IEC/EN 60664-1 |
| Rated impulse withstand voltage | 1 kV |
Connection data
750-8206/040-001
| Connection technology: communication/fieldbus | PROFIBUS: 1 x D-sub 9 socket; CANopen: 1 x D-sub 9 plug; Modbus (TCP, UDP): 2 x RJ-45; Modbus RTU: 1 x D-sub 9 socket; RS-232 serial interface: 1 x D-sub 9 socket; RS-485 interface: 1 x D-sub 9 socket; Telecontrol protocol IEC 60870-5-101/-103: 1 x D-sub 9 socket; Telecontrol protocol IEC 60870-5-104: 1 x RJ-45; Telecontrol protocol IEC 61850: 1 x RJ-45; Telecontrol protocol DNP3: 1 x RJ-45 or D-sub 9 socket |
| Connection technology: system supply | 2 x CAGE CLAMP® |
| Connection technology: field supply | 4 x CAGE CLAMP® |
| Connection type | System/field supply |
| Solid conductor | 0.25 … 2.5 mm² / 24 … 14 AWG |
| Fine-stranded conductor | 0.25 … 2.5 mm² / 24 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Connection technology: device configuration | 1 x Male connector; 4-pole |
Physical data
750-8206/040-001
| Width | 112 mm / 4.409 inches |
| Height | 100 mm / 3.937 inches |
| Depth | 71.9 mm / 2.831 inches |
| Depth from upper-edge of DIN-rail | 64.7 mm / 2.547 inches |
Mechanical data
750-8206/040-001
| Mounting type | DIN-35 rail |
