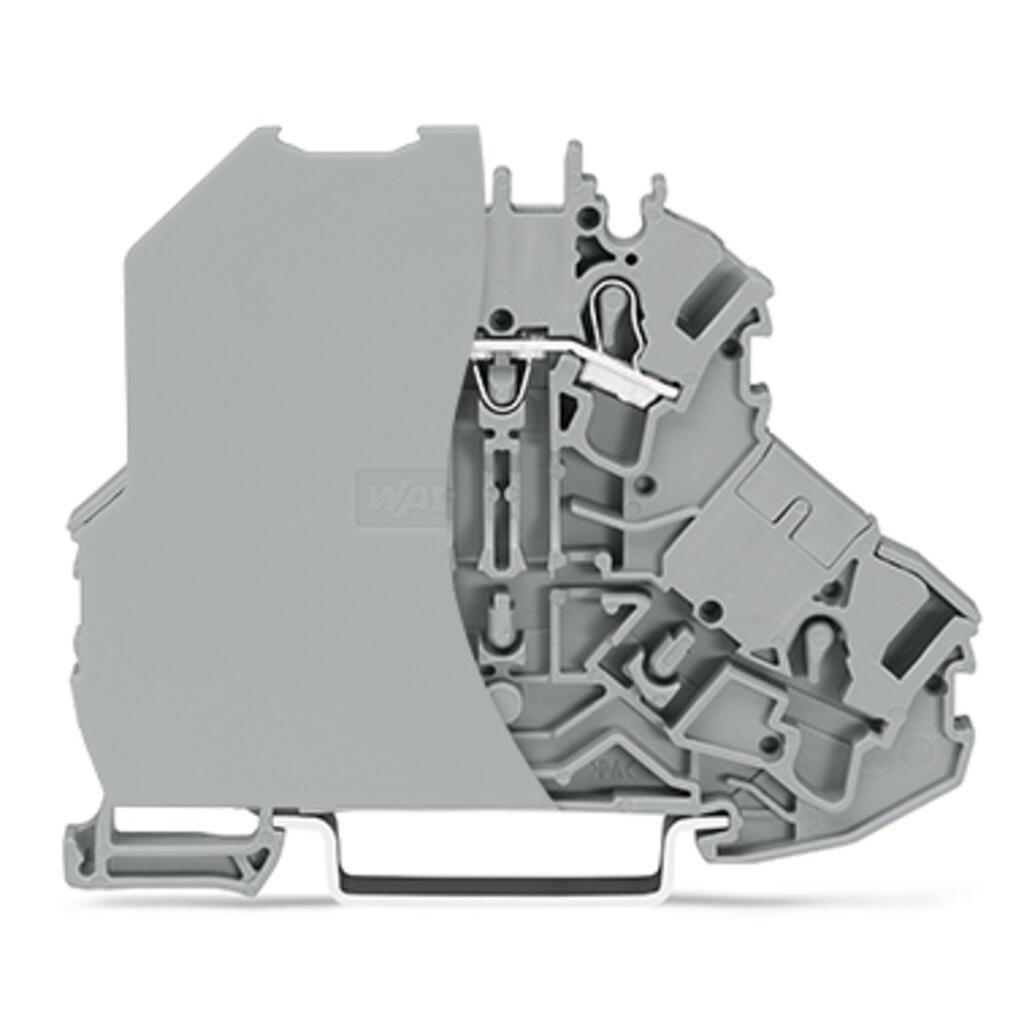

2002-2201/097-000 Cầu đấu dây Double-deck terminal block
Item no. 2002-2201/097-000
Double-deck terminal block
Double-deck terminal block; gray separator; L; oversized; contact inserts only on upper deck; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
Liên hệ:
Double-deck terminal block; gray separator; L; oversized; contact inserts only on upper deck; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
Item no. 2002-2201/097-000
Double-deck terminal block
Electrical data
Ratings per IEC/EN
Ratings per
IEC/EN 60947-7-1
Overvoltage category
III
III
II
Pollution degree
3
2
2
Nominal voltage
1000 V
–
–
Rated surge voltage
12 kV
–
–
Rated current
24 A
–
–
Ratings per IEC/EN 2
| Rated voltage (III/3) | 1500V |
| Rated impulse withstand voltage (III/3) | 12kV |
Ratings per UL
Approvals per
UL 1059
Use group
B
C
D
Rated voltage
1000 V
1000 V
–
Rated current
20 A
20 A
–
Power Loss
| Power loss, per pole (potential) | 0.766W |
| Rated current IN for specified power loss | 24A |
| Resistance value for specified, current-dependent power loss | 0.001Ω |
General information
| Voltage type 1 | AC/DC |
| Voltage type 2 | DC |
Connection data
| Clamping units | 2 |
| Total number of potentials | 1 |
| Number of levels | 2 |
Connection 1
| Connection technology | Push-in CAGE CLAMP® |
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Nominal cross-section | 2.5 mm² |
| Solid conductor | 0.25 … 4 mm² / 22 … 12 AWG |
| Solid conductor; push-in termination | 0.75 … 4 mm² / 18 … 12 AWG |
| Fine-stranded conductor | 0.25 … 4 mm² / 22 … 12 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5 mm² / 22 … 14 AWG |
| Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5 mm² / 18 … 14 AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
| Strip length | 10 … 12 mm / 0.39 … 0.47 inches |
| Wiring direction | Front-entry wiring |
Physical data
| Width | 7.2 mm / 0.283 inches |
| Height | 69.9 mm / 2.752 inches |
| Depth from upper-edge of DIN-rail | 53.3 mm / 2.098 inches |
Mechanical data
| Potential marking | L |
| Mounting type | DIN-35 rail |
| Marking level | Center/side marking |
