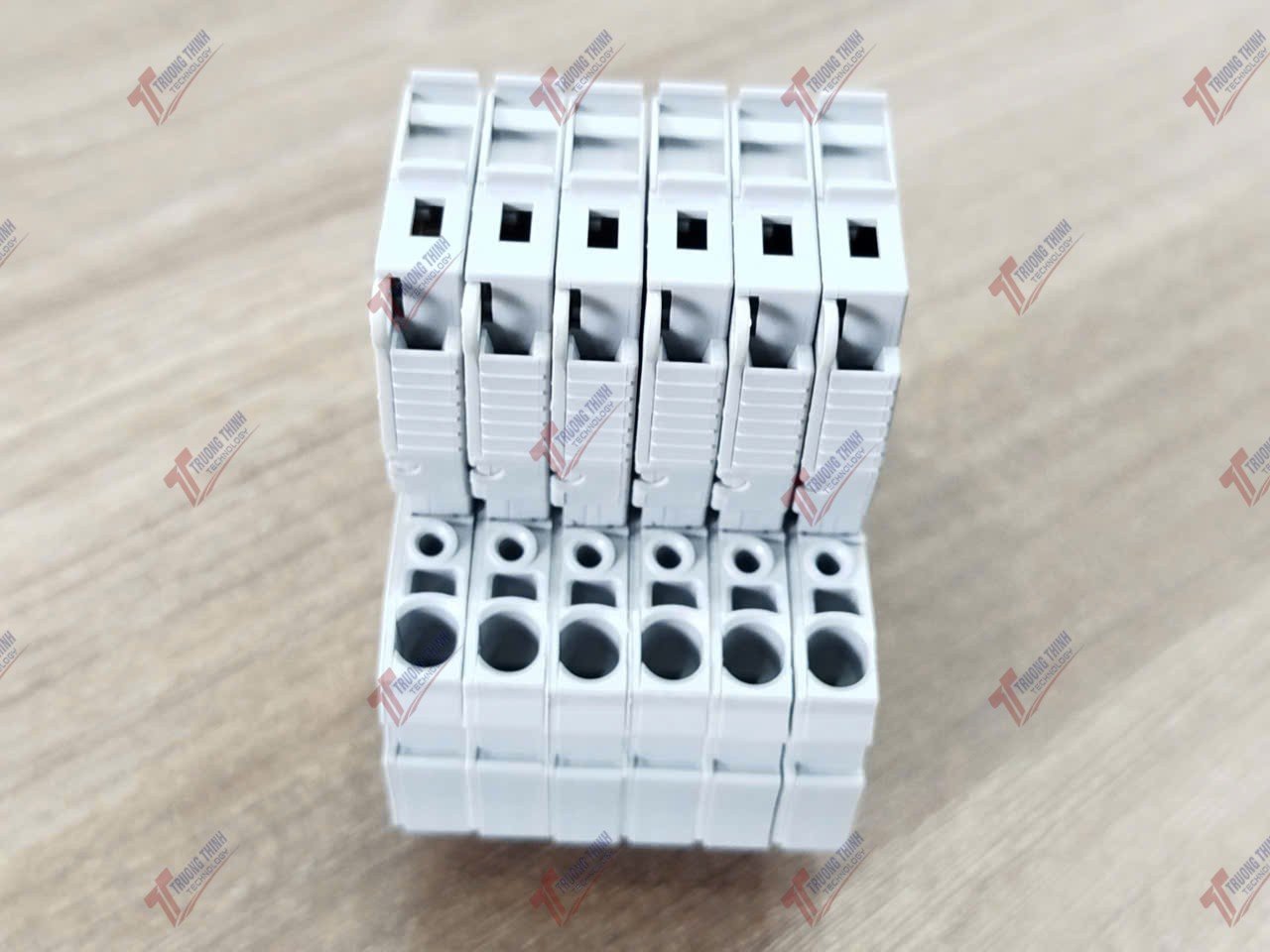

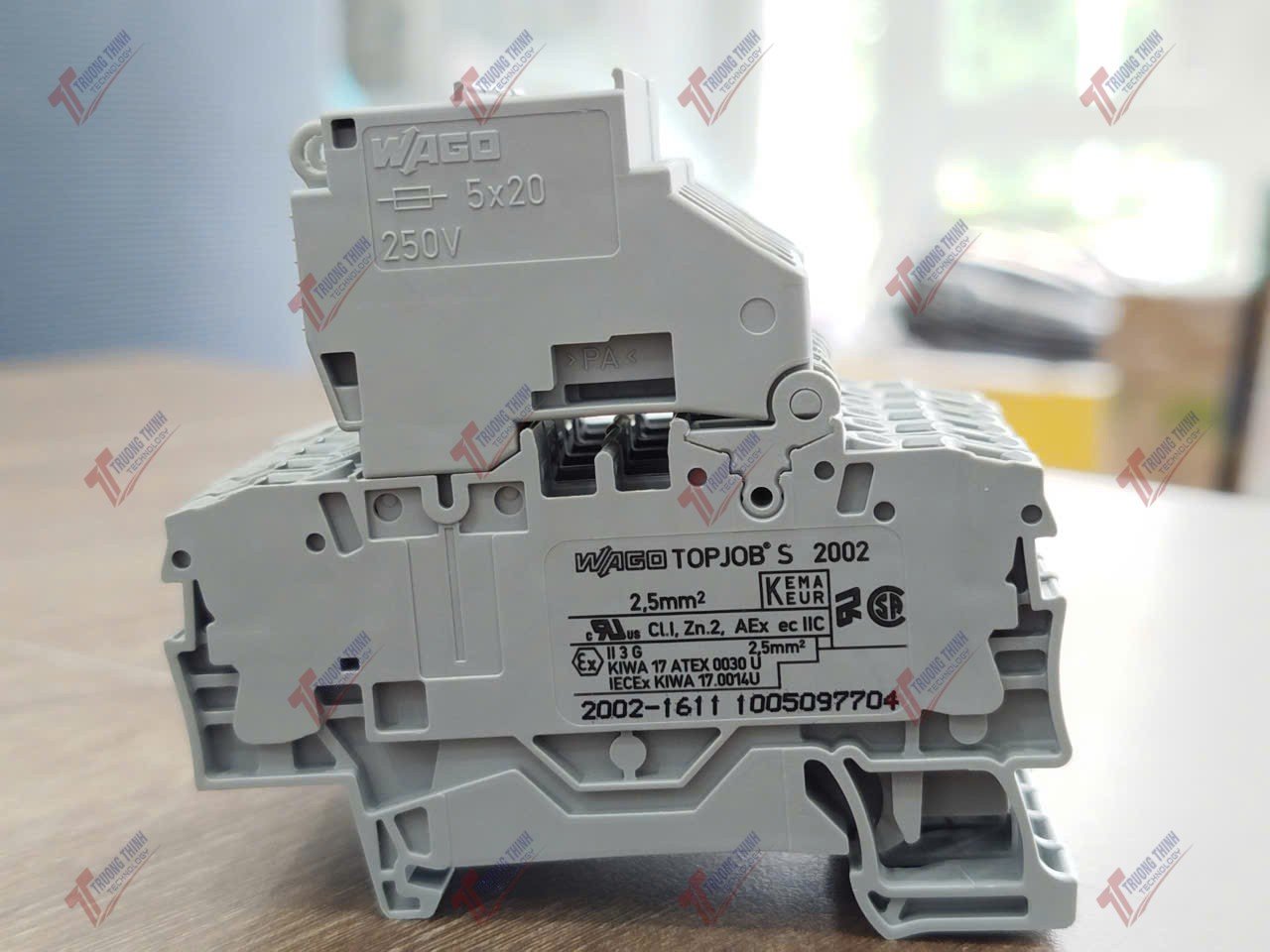

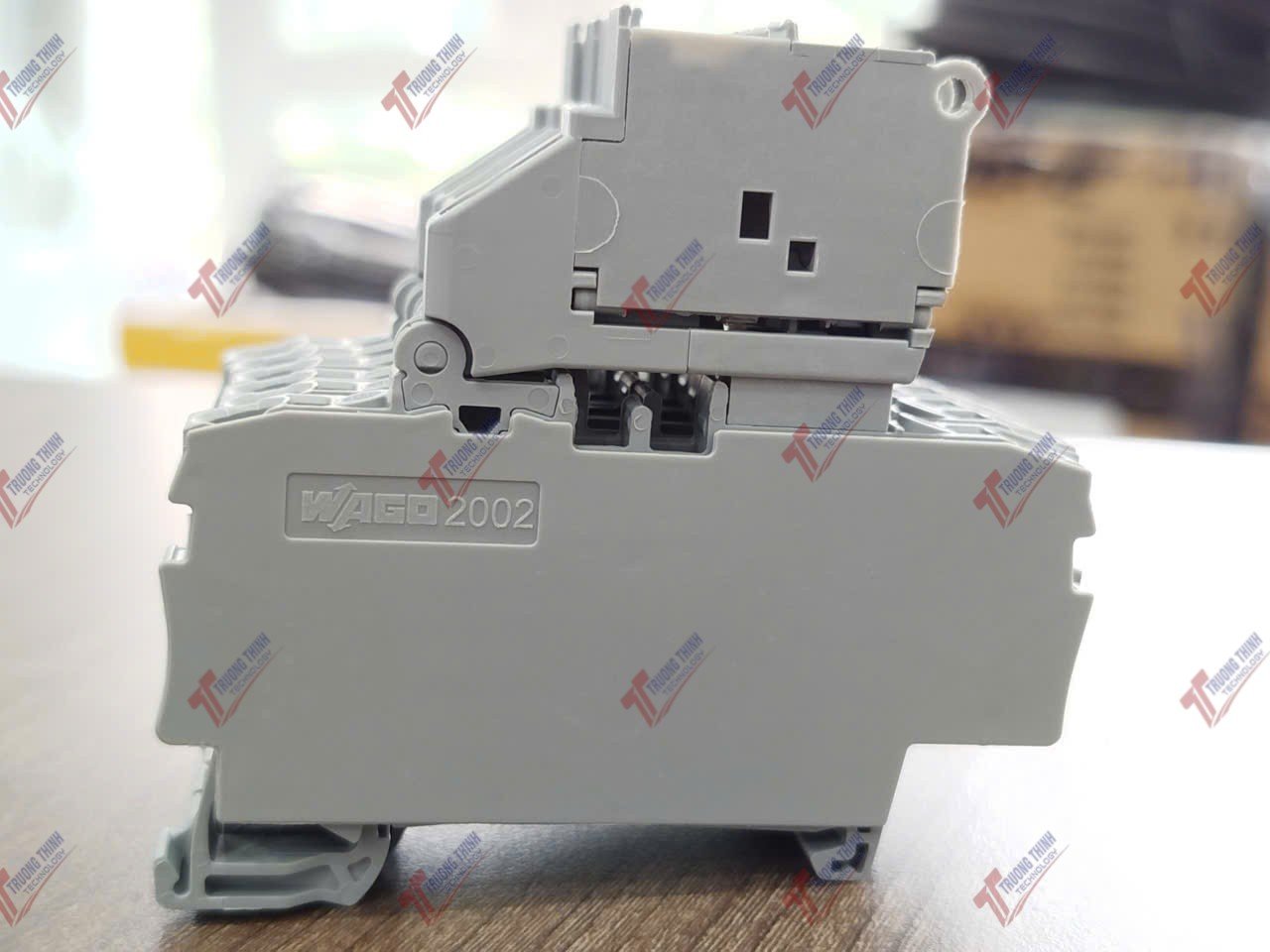

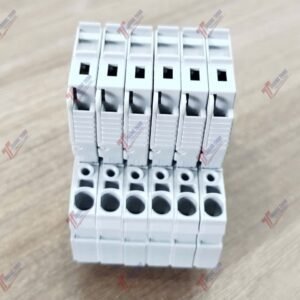

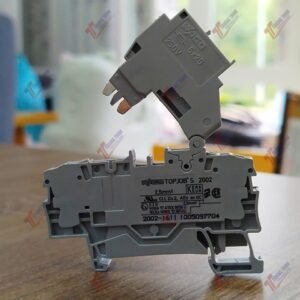

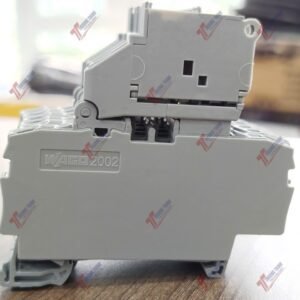

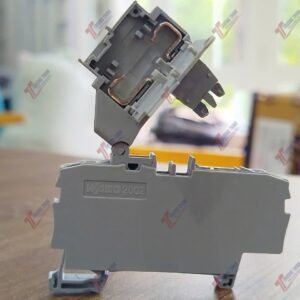

2002-1611 | WAGO | Cầu Đấu Dây 2002-1611 | 2-conductor fuse terminal block

2002-1611
2-conductor fuse terminal block; with pivoting fuse holder; and end plate; for 5 x 20 mm miniature metric fuse; without blown fuse indication; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

Mã sản phẩm: 2002-1611 Danh mục: Cầu Đấu Dây, WAGO Thẻ: 2002-1611, cầu đấu 2002-1611, cầu đấu dây 2002-1611, cầu đấu dây wago, phân phối wago việt nam, terminal wago, wago, wago 2002-1611, wago tại việt nam, wago terminal

Mô tả
WAGO VIET NAM

Ratings (note)

Electrical ratings are given by the fuse.

Approvals per

UL 1059

Use group

Rated voltage

250 V

Rated current

10 A

Approvals per

CSA 22.2 No 158

Use group

Rated voltage

250 V

–

Rated current

6.3 A

–

Reference hazardous areas	See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
Ratings per	ATEX: KIWA 17 ATEX 0030 U / IECEx: KIWA 17.0014U (Ex ec IIC Gc)
Rated voltage EN (Ex e II)	275V
Rated current (Ex e II)	6.3A

Power loss (max.) P_{l (max.)} (note)	When selecting glass cartridge fuses, make sure that the maximum power loss listed below is not exceeded. The power loss is determined according to IEC or EN 60947-7-3/VDE 0611-6 at 23°C. The temperature rise of the terminal block must be checked according to their application and mounting. Higher ambient temperatures represent an additional impact on miniature fuses. Therefore, in such applications, the rated current must be reduced if necessary. More details are available from the manufacturers.
Power loss P_l max. overload and short-circuit protection (individual arrangement)	1.6W
Power loss P_l max. overload and short-circuit protection (group arrangement)	1.6W
Power loss P_l max. short-circuit protection (individual arrangement)	1.6W
Power loss P_l max. short-circuit protection (group arrangement)	1.6W

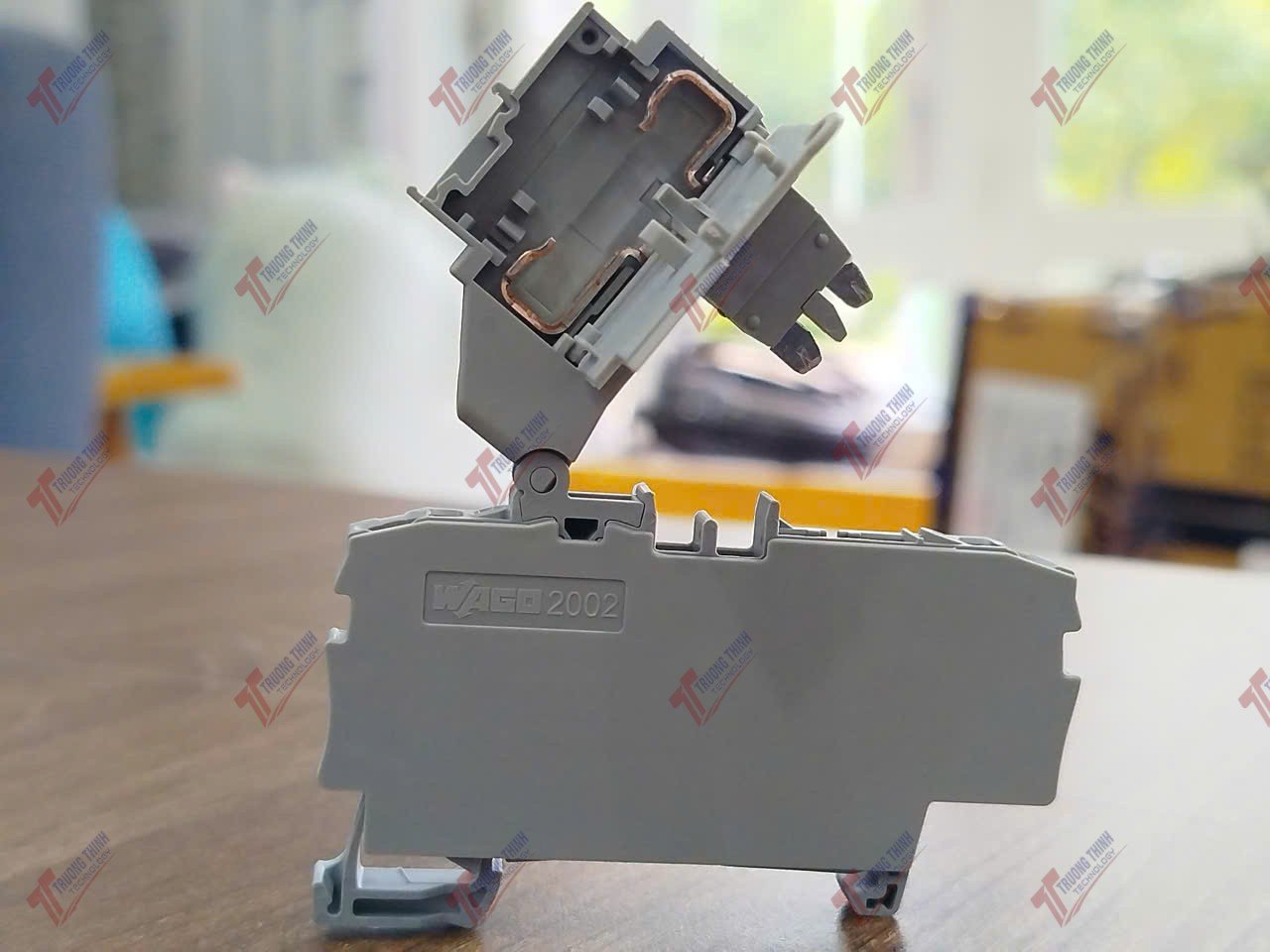

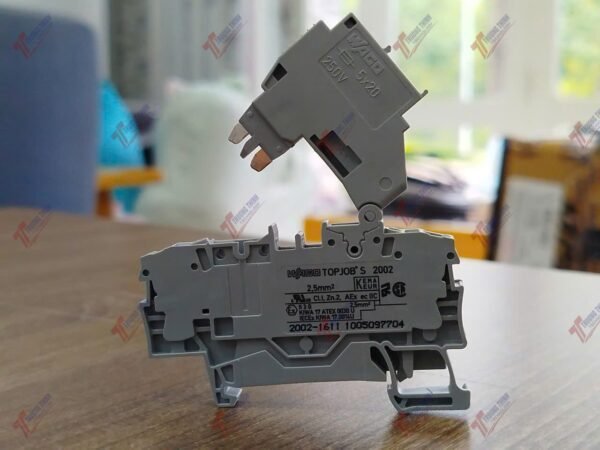

Fuse receptacle	pivoting
Fuse type	Cylindrical fuse; 5 x 20 mm

Connection points	2
Total number of potentials	1
Number of levels	1
Number of jumper slots	2

Connection technology	Push-in CAGE CLAMP^®
Actuation type	Operating tool
Connectable conductor materials	Copper
Nominal cross-section	2.5 mm²
Solid conductor	0.25 … 4 mm² / 22 … 12 AWG
Solid conductor; push-in termination	0.75 … 4 mm² / 18 … 12 AWG
Fine-stranded conductor	0.25 … 4 mm² / 22 … 12 AWG
Fine-stranded conductor; with insulated ferrule	0.25 … 2.5 mm² / 22 … 14 AWG
Fine-stranded conductor; with ferrule; push-in termination	1 … 2.5 mm² / 18 … 14 AWG
Note (conductor cross-section)	Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length	10 … 12 mm / 0.39 … 0.47 inches
Wiring direction	Front-entry wiring
