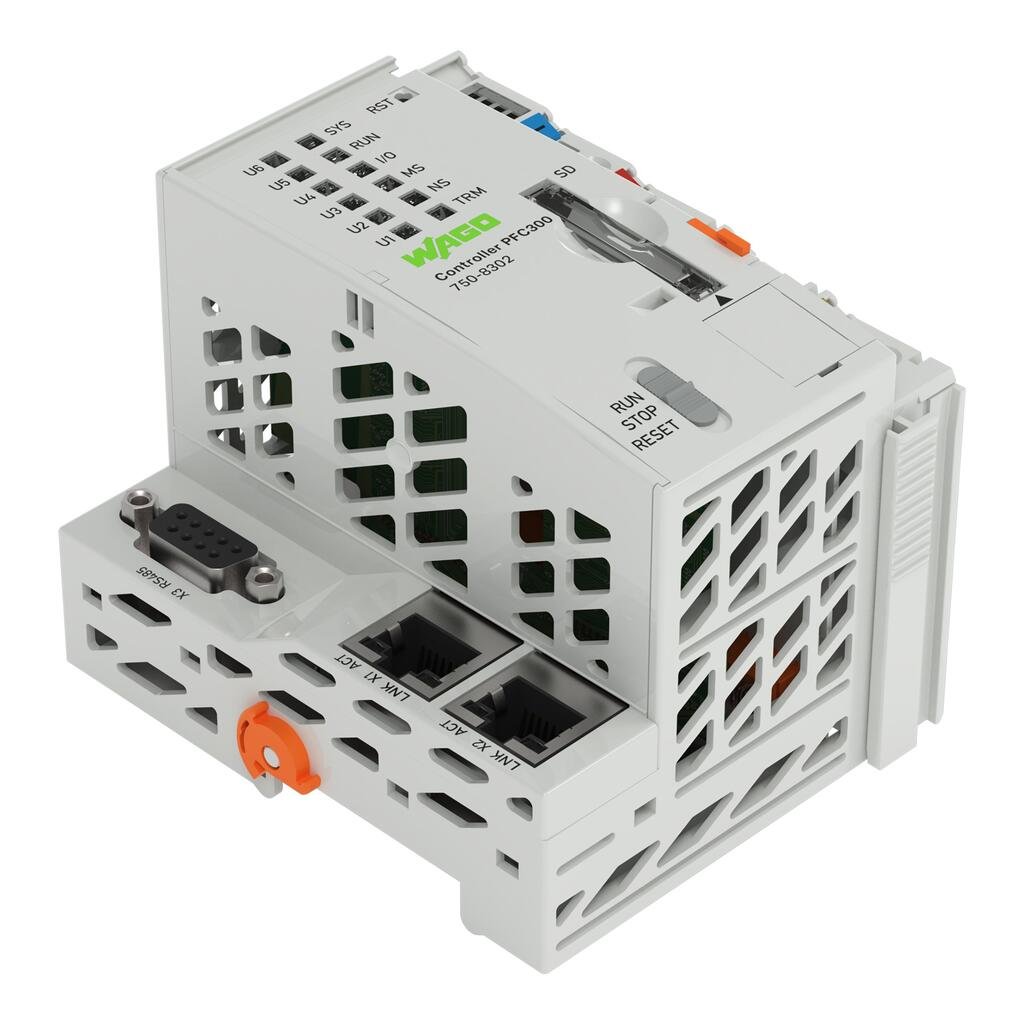

750-8302 Controller PFC300

750-8302

Controller PFC300; 2 x ETHERNET, RS-485

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

SKU: 750-8302 Danh mục: PLCs – Controllers Thẻ: 750-8302, 750-8302 wago, đại lý wago, phân phối wago việt nam, wago, wago 750-8302, wago hcm, wago ho chi minh, wago sai gon, wago việt nam, wago vung tau Thương hiệu: WAGO

Mô tả
WAGO VIET NAM

4.9/5 - (866 bình chọn)

Controller PFC300; 2 x ETHERNET, RS-485

750-8302

Communications	Telecontrol protocols, requires an additional license Fieldbuses integrated into CODESYS: Modbus TCP master/slave Modbus (UDP), WagoAppPlcModbus Library Modbus (RTU), WagoAppPlcModbus Library EtherNet/IP^TM Adapter (slave) EtherNet/IP^TM Scanner EtherCAT® Master PROFINET Controller (limited) OPC UA Server/Client OPC UA Pub/Sub (can be installed later) ETHERNET RS-485 interface MQTT
ETHERNET protocols	DHCP DNS NTP SFTP FTP FTPS SNMP HTTP HTTPS SSH
Telecontrol protocols	IEC 60870 (additional license as slave or master) IEC 61850 (additional license as Client or Server) DNP3 (additional license as Slave or Master)
Visualization	Web-Visu
Operating system	Real-time Linux (with PREEMPT_RT patch)
CPU	Dual Core Cortex A53 1.25 GHz
Programming languages per IEC 61131-3	Instruction List (IL) Ladder Diagram (LD) Function Block Diagram (FBD) Continuous Function Chart (CFC) Structured Text (ST) Sequential Function Chart (SFC)
Programming environment	CODESYS V3.5 Includes the following CODESYS features: MULTICORE, WebVisu, License for IIoT Libraries, License for OPC UA PUB/SUB
Configuration options	CODESYS V3 WAGO-I/O-CHECK Web-Based Management CODESYS Library
Transmission rate	100/1000 Mbit/s
Transmission medium (communication/fieldbus)	Twisted pair S-UTP; 100 Ω; Cat. 5e; 100 m maximum cable length
Main memory (RAM)	2 GB, LPDDR4 RAM
Internal memory (flash)	32 GB, eMMC Flash
Non-volatile hardware memory	128kbyte
Program memory	32 MB
Data memory	512 MB
Non-volatile software memory	128.kbyte
Type of memory card	SD, SDHC and SDXC (all guaranteed properties only valid with the WAGO memory card)
Memory card slot	Push-push mechanism; cover lid (sealable)
Number of modules per node (max.)	250
Number of modules without a bus extension (max.)	64
Input and output process image (internal) max.	1000 words/1000 words
Input and output process image (Modbus®) max.	CODESYS V3: 32000 words/32000 words
Indicators	LED (SYS, RUN, I/O, U1 … U7) red/green/orange: Status of system, program, local data bus, status programmable by user (can be used via CODESYS library); LED (A, B) green: Status of system power supply, field supply
Supply voltage (system)	24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP^® connection)
Input current (typ.) at nominal load (24 V)	550mA
Total current (system supply)	1,700mA
Supply voltage (field)	24 VDC (-25 … +30 %); via power jumper contacts
Current carrying capacity (power jumper contacts)	10A
Number of outgoing power jumper contacts	3
Isolation	500 VDC system/field

750-8302

Connection technology: communication/fieldbus	Modbus (TCP, UDP): 2 x RJ-45; Modbus RTU: 1 x D-sub 9 socket; RS-485 interface: 1 x D-sub 9 socket
Connection technology: system supply	2 x CAGE CLAMP^®
Connection technology: field supply	6 x CAGE CLAMP^®
Connectable conductor materials	Copper
Connection type	System/field supply
Solid conductor	0.08 … 2.5 mm² / 28 … 14 AWG
Fine-stranded conductor	0.08 … 2.5 mm² / 28 … 14 AWG
Strip length	8 … 9 mm / 0.31 … 0.35 inches
Connection technology: device configuration	1 x USB-C 2.0

750-8302

Width	78.6 mm / 3.094 inches
Height	100 mm / 3.937 inches
Depth	71.9 mm / 2.831 inches
Depth from upper-edge of DIN-rail	64.7 mm / 2.547 inches

750-8302

Mounting type	DIN-35 rail
Ambient temperature (operation)	-25 … +60 °C
Ambient temperature (storage)	-25 … +85 °C
Protection type	IP20
Pollution degree	2 per IEC 61131-2
Operating altitude	without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
Mounting position	Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
Relative humidity (without condensation)	95%
Vibration resistance	4g per IEC 60068-2-6
Shock resistance	15g per IEC 60068-2-27
EMC immunity to interference	per EN 61000-6-2, marine applications in preparation
EMC emission of interference	per EN 61000-6-3, marine applications in preparation
Exposure to pollutants	per IEC 60068-2-42 and IEC 60068-2-43
Permissible H₂S contaminant concentration at a relative humidity 75 %	10ppm
Permissible SO₂ contaminant concentration at a relative humidity 75 %	25ppm
